A32XPXA LCD Digital Thermostat For AHU

A32XPXA LCD Digital Thermostat For AHU
• Standard European size.
• 0.1°C Temperature accuracy.
• Dual 0-10V modulating output/input.
• 6 Relay on-off output.
• Outfit RS-485 port operated by the MODBUS RTU open protocol.
• Optional humidity sensor for temperature and humidity control.



Dimensions：（L x W x H mm）

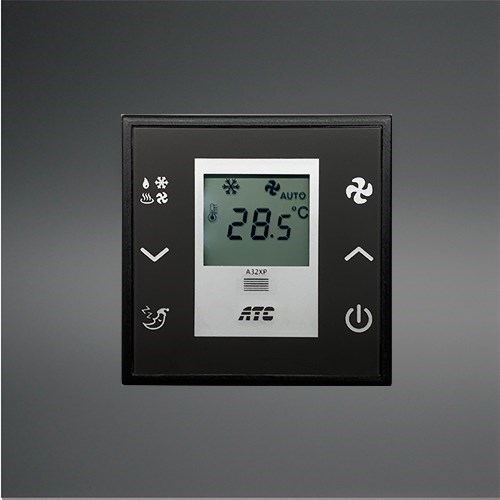

• A32XP Main body：86 x 86 x 14.5

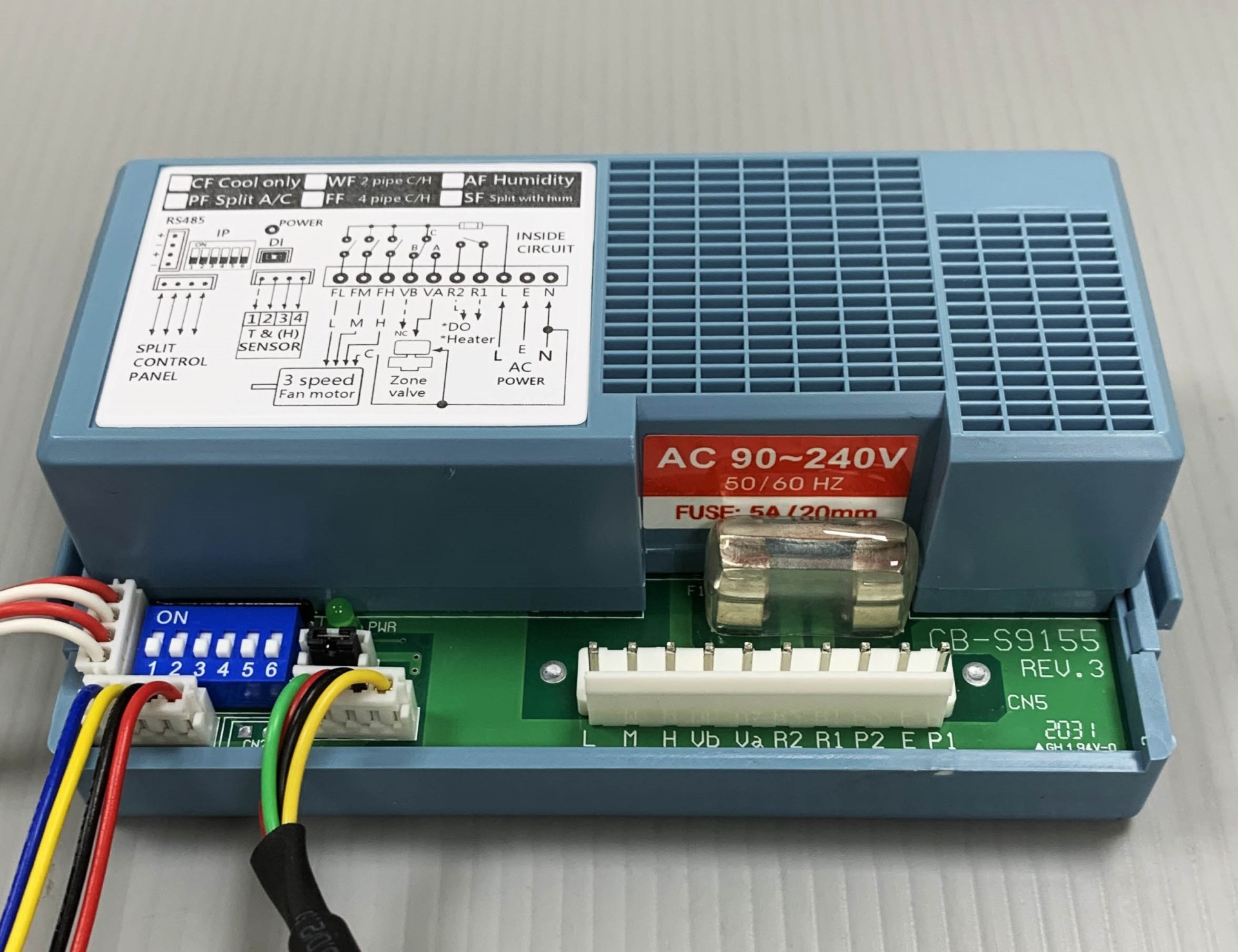

• Controller：115 x 68 x 38

分享到

A32XPXA Catalog Download



Technical Specifications

Input power AC 90~240V, 50/60Hz general
Display type LCD with backlight screen
Operation key Graphic CVD touch key
Control panel European size  86x86 mm
Temp. set range 5.0~35.0 °C (Original)    -50.0~120.0 °C (Max.)
Temp. detect range -55.0~125.0 °C
Temp. resolution 0.1℃
Communication wire  Panel vs controller: 0.5mm² x 4C; longest 100 meters
Output capability 3-speed : 5A/220VAC ; Valve / Chiller : 3A/220VAC
Support fan motor Single speed output / 3-speed motor ( Optional )
Modulating output 0(2)-10VDC / 0(4)-20mA for Cooling & Heating
Modulating input 0(2)-10VDC / 0(4)-20mA for Cooling & Heating
Operation mode Cool / Humidity / Fan only ( / Heat )( / Auto )
Temp. sensor semi-conductor thermometer
RS485 protocol  Modbus RTU 9600 or 19200 bps N,8,1
Optional Accessories
Remote control  Infrared receiver ( Fit for R30RC )
Humidity sensor  Integrated circuit module
Humidity set /detect range  20 ~ 90 %
Humidity resolution  1%
