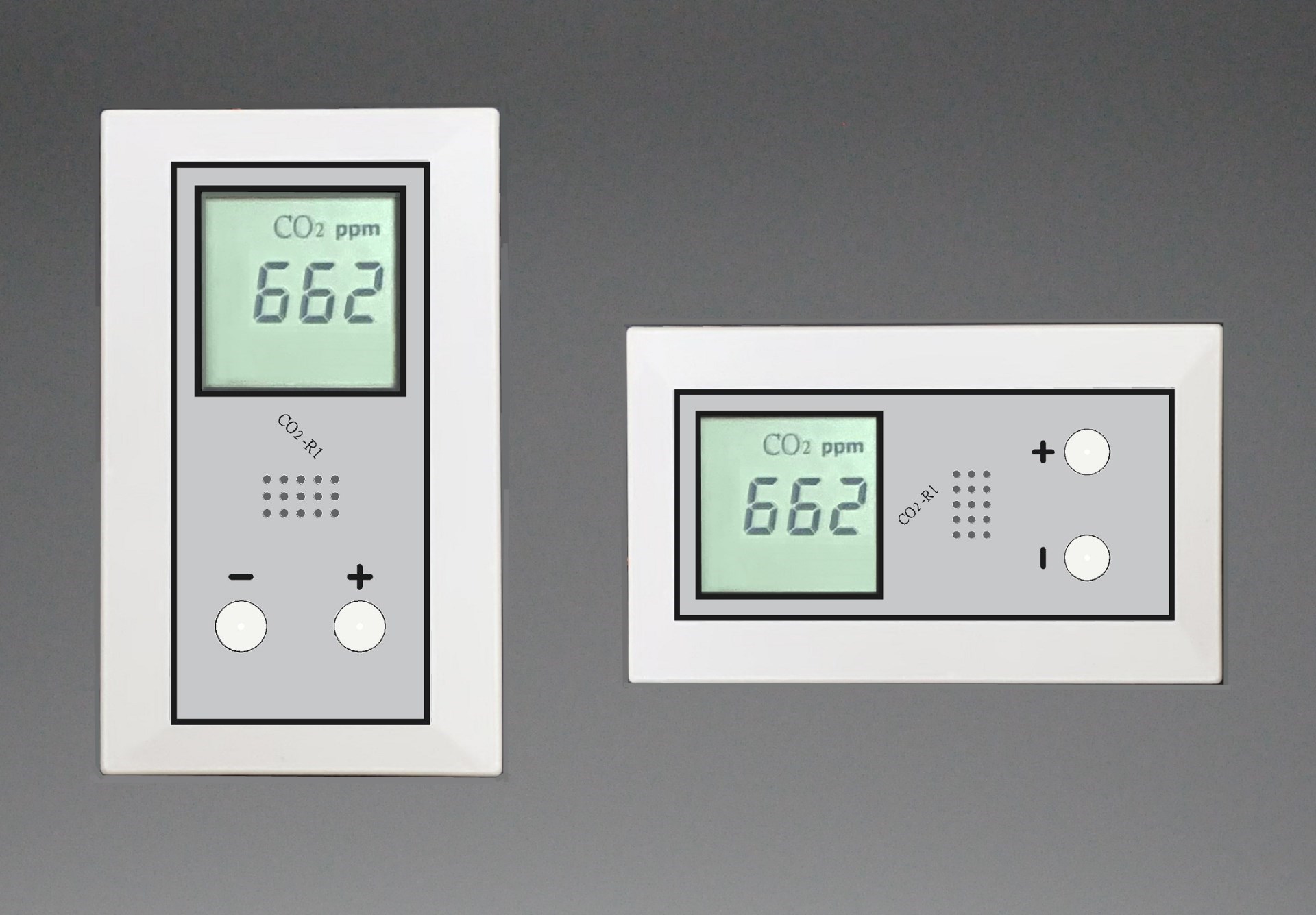

CO2-R1 LCD Carbon Dioxide Detector

CO2-R1 LCD Carbon Dioxide Detector
• Standard American gauge.
• Stability and accurate output provided by NDIR sensing.
• Provide relay contact and analog voltage linear output.
• Outfit RS-485 port operated by the MODBUS RTU open protocol.
• Optional speed output can control frequency conversion AHU or ERV.
• Suitable for clean room/library/manufacturing/smart building and other applications.




Dimensions：（L x W x H mm）
• CO2-R1 Main body：120 x 72 x 20

分享到

CO2-R1 Catalog Download


Technical Specifications

Input power DC 12V  ( Supplied by external power supply )
Gas measurement Carbon dioxide (CO2)
Display type LCD display screen
Measurement method NDIR
Installing dimension American gauge Straight／horizontal
Measuring range 0~2000 ppm (Original) / 0~5000 ppm (Max)
Measuring accuracy ±50 ppm + 3% measured value (Can be calibrated)
Sensor Output PWM / DAC / UART
Sampling time Once a second
Relay contact output SPST   10A / 220VAC
Differential value/delay time 0~(50)~150 ppm / 0~(60)~600 seconds adjustable
Analog Outpu 0(2)~10VDC ; 0(4)~20mA
Analog Output type Carbon dioxide concentration or rotating speed signal
Protocol type RS485 Serial communication （Max. 1200m）
Connected devices Max. 31
Environment Temperature：0 ~ 50 °C；Humidity：0~90%(non condensing)
Sensor lifetime More than 5 years (No improper use or environmental factors)
