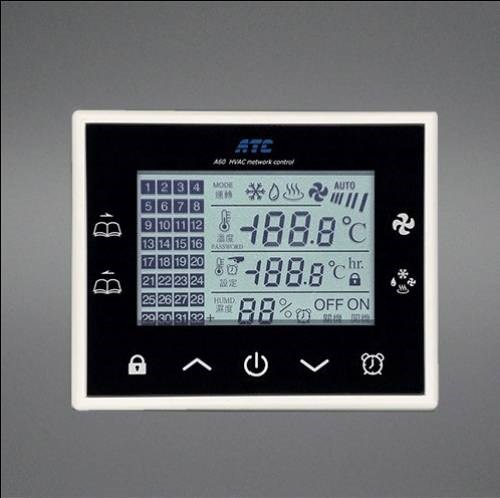

A60KP Centralized HVAC Control System

• Central monitoring panel, centralized connection and management of FCUs.
• Large LCD backlight screen with Chinese and English and graphic display.
• The stable CVD capacitive touch buttons make the operation smooth.
• The full list will actively warn of errors.
• Temperature display and setting are accurate to 0.1 degrees Celsius.
• The power-off reset function ensures that the setting data is retained.
• Dual-channel Modbus with network gateway function to connect to the host monitoring.




Dimensions：（L x W x H mm）
• A60KP Main body：120 x 100 x 16
• Power supply：115 x 68 x 38

分享到

A60KP Catalog Download

Technical Specifications

Input power AC 90~240V, 50/60Hz general convert to DC12V 400mA power supplier
Display type Chinese and English graphics comparison with 4 "LCD backlight screen（80×50mm）
Protocol type RS485 Serial communication （Max. 1200m）
Temp. set detail Detect range：-55.0～125.0 °C / Set range：5.0～35.0 °C (Original), -50.0～120.0 °C (Max.) / Resolution：0.1 °C
Humidity set detail Detect range：1～90％ ＆ Set range：20～90％ ＆ Resolution：1%
Fan speed control 3 speed (XF) / 3 & 20 speed (XE) auto/manual
Operation mode Cool / Humidity / Fan only ( / Heat )( / Auto )
Operation key CVD Capacitive touch panel
Communication protocol Modbus RTU 9600 or 19200 bps N,8,1
Communication wire UL2464 AWG22×2C Twisted-pair & Shielded wire
Connected devices Up Link：63／Down Link：40（Max. 2520）
Dimensions L×W×H：120×100×16（mm）
Protect class IP52
