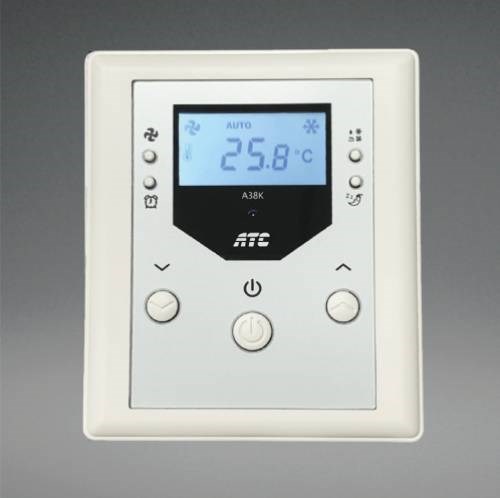

A38KP LCD Digital Thermostat

A38KP LCD Digital Thermostat
• 0.1°C Temperature accuracy.
• -50.0~120.0 °C Temp. set range.
• Intuition graphic touch keys.
• Outfit RS-485 port operated by the MODBUS RTU open protocol.



Dimensions：（L x W x H mm）
• A38KP Main body：120 x 100 x 16

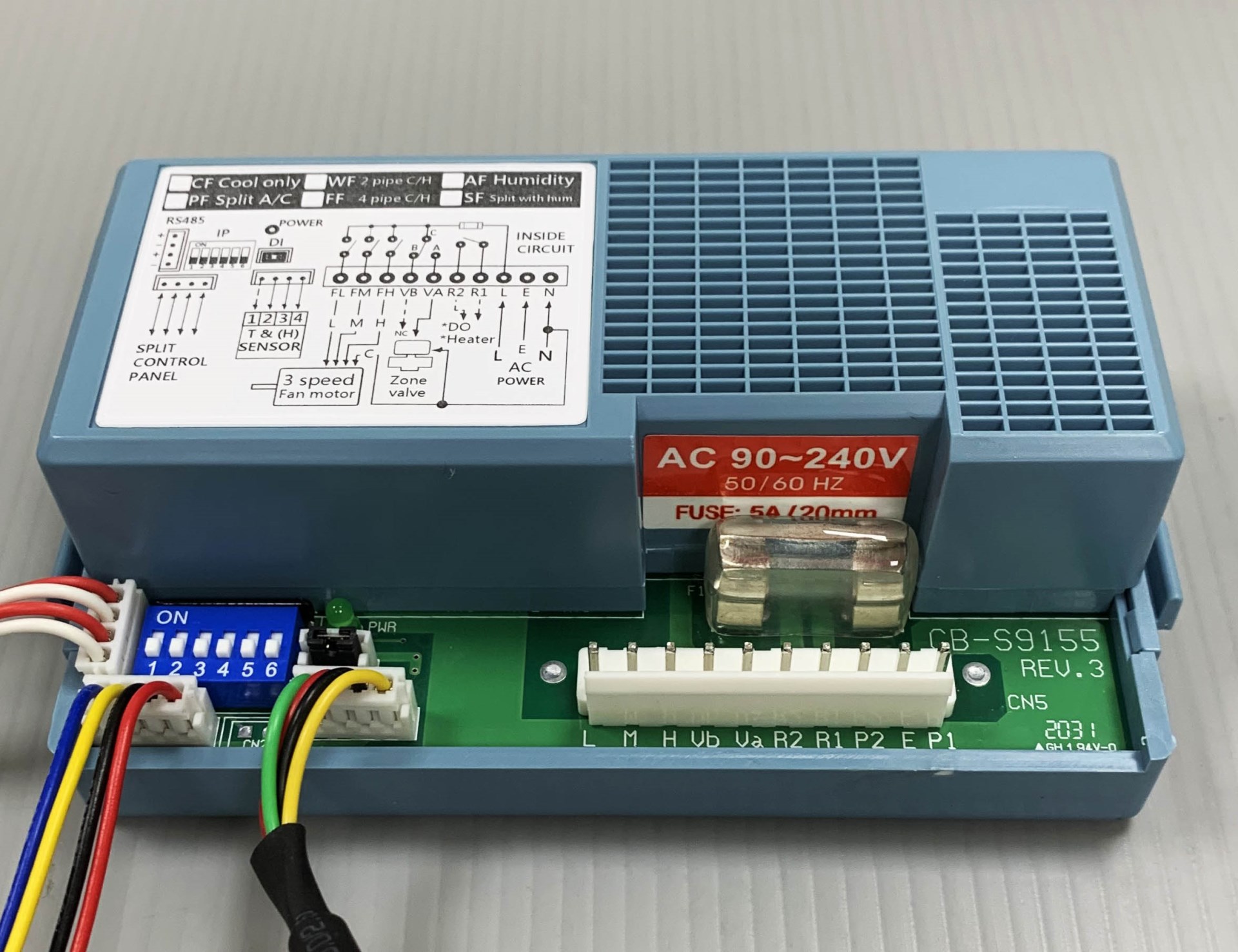

• Power supply：115 x 68 x 38
• Optional humidity sensor for temperature and humidity control.

分享到

A38KP Catalog Download



Technical Specifications

Input power AC 90~240V, 50/60Hz general
Display type LCD with backlight screen
Operation key Compound Press key
Control panel General Specification.
Temp. set range 5.0~35.0 °C (Original)    -50.0~120.0 °C (Max.)
Temp. detect range -55.0~125.0 °C
Temp. resolution 0.1℃
Communication wire  Panel vs controller: 0.5mm² x 4C; longest 100 meters
Output capability 3-speed : 5A/220VAC ; Valve / Chiller : 3A/220VAC
Support fan motor 3-speed motor ( XF ) / EC motor ( XE )
Air volume control 3 speed (XF) / 3 & 20 speed (XE) auto/manual
Operation mode Cool / Humidity / Fan only ( / Heat )( / Auto )
Temp. sensor Digital thermometer
RS485 protocol  Modbus RTU 9600 or 19200 bps N,8,1
Optional Accessories
Remote control  Infrared receiver ( Fit for R30RC )
Humidity sensor  Integrated circuit module
Humidity set /detect range  20 ~ 90 %
Humidity resolution  1%
