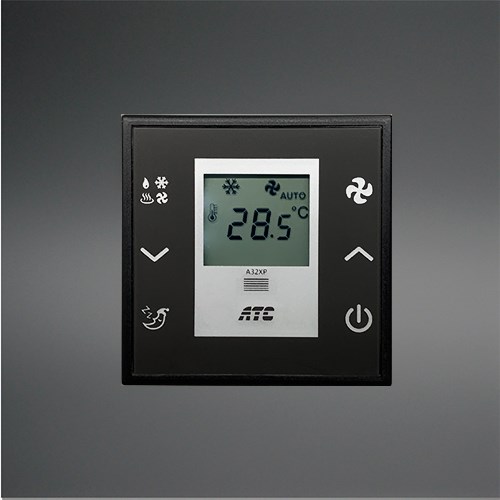

A32XP LCD Digital Thermostat

A32XP LCD Digital Thermostat
• Standard European size.
• 0.1°C Temperature accuracy.
• -50.0~120.0 °C Temp. set range.
• Intuition graphic touch keys.
• Outfit RS-485 port operated by the MODBUS RTU open protocol.
• Optional humidity sensor for temperature and humidity control.



Dimensions：（L x W x H mm）
• A32XP Main body：86 x 86 x 14.5

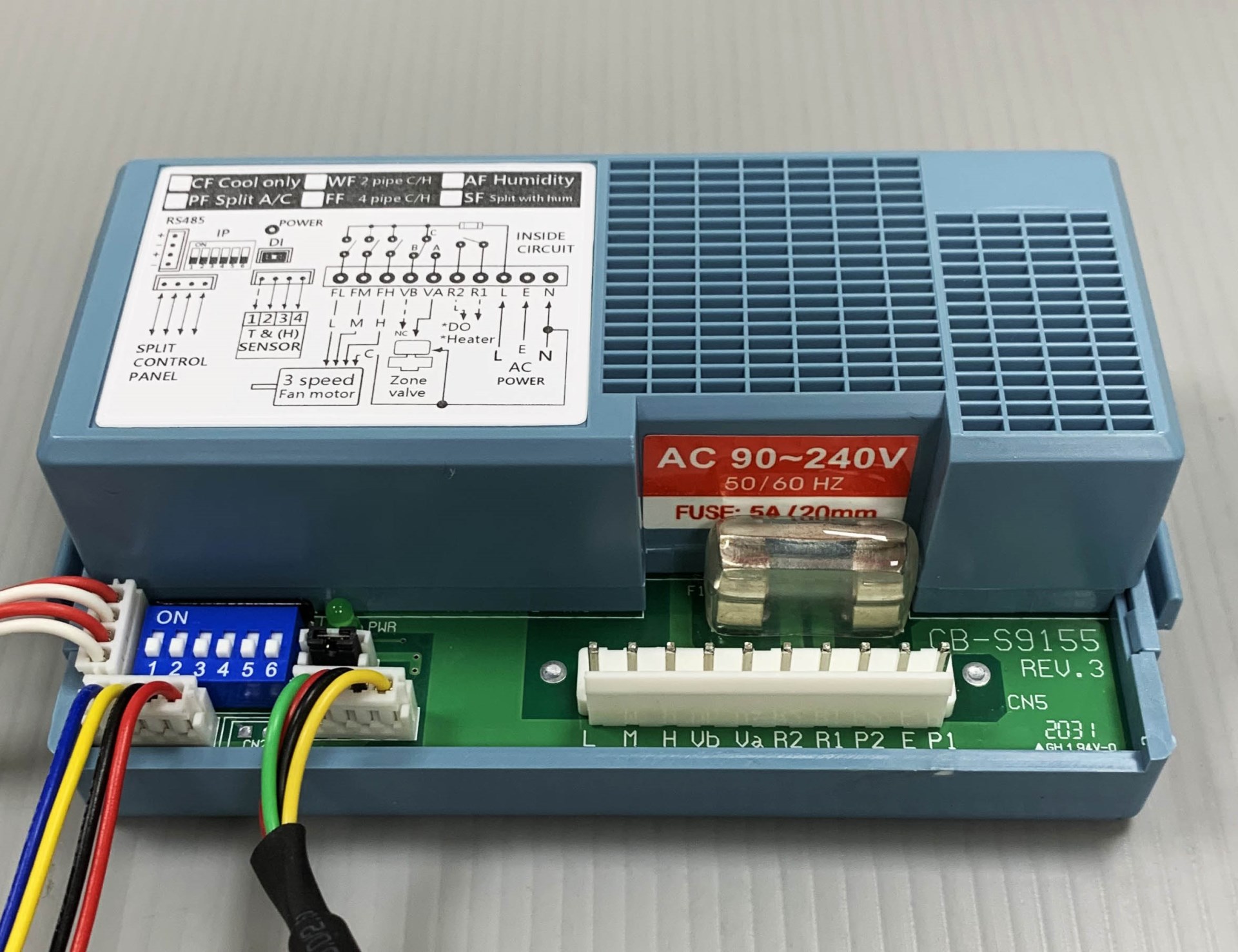

• Controller：115 x 68 x 38

分享到

A32XP Catalog Download



Technical Specifications

Input power AC 90~240V, 50/60Hz general
Display type LCD with backlight screen
Operation key Graphic CVD touch key
Control panel European size  86x86 mm
Temp. set range 5.0~35.0 °C (Original)    -50.0~120.0 °C (Max.)
Temp. detect range -55.0~125.0 °C
Temp. resolution 0.1℃
Communication wire  Panel vs controller: 0.5mm² x 4C; longest 100 meters
Output capability 3-speed : 5A/220VAC ; Valve / Chiller : 3A/220VAC
Support fan motor 3-speed motor ( XF ) / EC motor ( XE )
Air volume control 3 speed (XF) / 3 & 20 speed (XE) auto/manual
Operation mode Cool / Humidity / Fan only ( / Heat )( / Auto )
Temp. sensor Digital thermometer
RS485 protocol  Modbus RTU 9600 or 19200 bps N,8,1
Optional Accessories
Remote control  Infrared receiver ( Fit for R30RC )
Humidity sensor  Integrated circuit module
Humidity set /detect range  20 ~ 90 %
Humidity resolution  1%
